Facts:

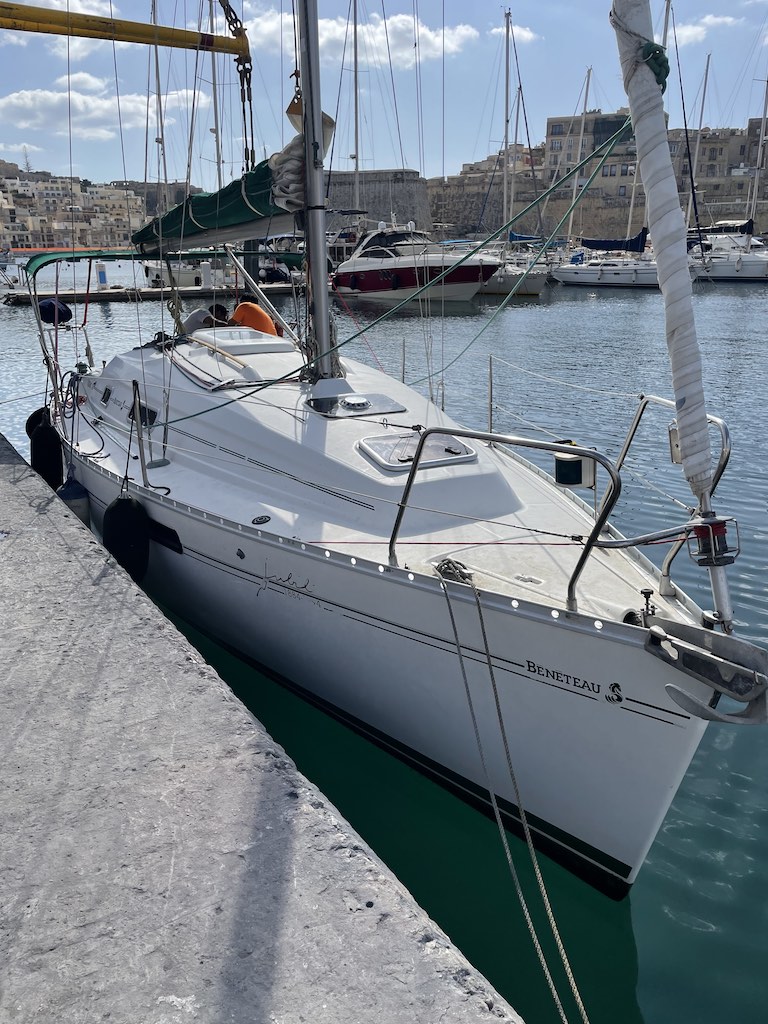

• Sailing Yacht 'Polaris X'
• Beneteau Oceanis 281 build in 1995
• Registration: Valletta #5610
• Hull #0144085142810064
• LOA:8.5m Beam:2.86m Draft:1.7m/1.35m
• Displacement/Ballast: 2.600kg/760kg
• MMSI: 249000579 Callsign: 9H5804
• Engine: Volvo Penta MD2020B 18hp #5101306751
• Gearbox: Volvo Penta MS2 #5101072430
• Fuel/Water tank: 30l/190l
• Gross & Net tonnage: 6.61 tons
• Main/Fore Sail: 15.6m²/15.5m²
• I:10.16m P:8.99m J:3.07m E:3.45m
• Hull speed: 6.6kt
• 2x batteries
  • NEW: ACDelco M74-H3E 70Ah (Starter)
  • NEW: Varta LFS105N 105Ah (House I)
• Jabsco 44010-2010 water pump 2.5 GPM 3.2A
• Jabsco 37202-0000 bilge pump 4.5 GPM 8A
• 2x battery charger ULGD 3.8 A1 (Manual)
• Bestek 300W power inverter
• NEW: 7.5kg Bruce with 15m chain (6mm) and 40m line

Documents:

• Registration Certificate
• Certificate of Insurance
• Radio Station Licence
• Oceanis 281
  • Operating Handbook (PDF, english)
  • Quick Specs
• Volvo Penta MD20x0
  • Operators Manual
  • Instruction Book
  • Service Protocol
• Volvo MS2 Gearbox Workshop Manual
• Survey & Valuation 11/2022
• Survey & Valuation 11/2024

Equipment:

• NEW: Axiom 7 Chartplotter (Users Manual)
• NEW: Simarine PICO battery monitor with SC303 shunt
• NEW: 2x 120W solar panels with PWM controller CM3024Z
• NEW: SeaTalkNG i70s, DST800, Wind transducer E22078
• NEW: YDWG-02 NMEA 2000 Wi-Fi gateway
• Raymarine Tridata ST60+ (Handbook)
• Standard Horizon GX2100E VHF/AIS Radio (Owners Manual)
• Raymarine ST2000+ tiller pilot (Handbook)
• Standard Horizon CP180i chart plotter (Users Manual)
• Trevi XCD 5740 BT (Instruction Manual)
• McMurdo Fast Find 220 PLB
• Oregon Scientific Travel Barometer HiGlo EB312E
• 3x fire extinguisher
• numerous life vests
• Speaker KDX audio 165-Marine, 30 Watts
• day shapes (anchor ball and cone)

Upgrade History 2023:

• all new navlights (LED) with new cables
• new VHF antenna and new steam light cable
• new SeatalkNG with wind vane, i70s and WiFi gateway
• new main and aft cabin portlights
• Jabsco marine toilet completely replaced

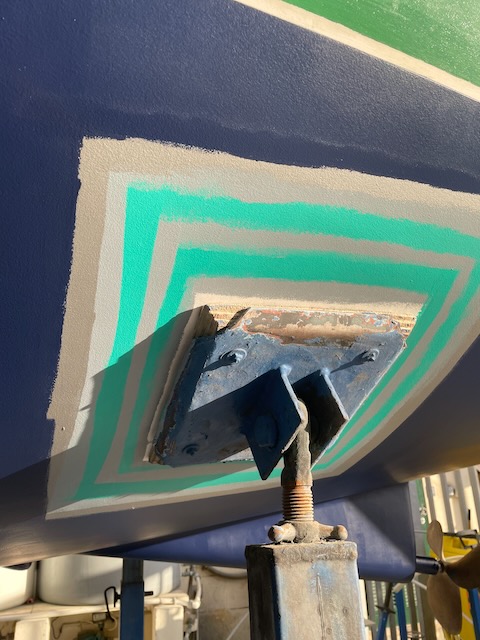

• complete osmosis prevention and fresh antifouling
• automatic/manual bilge pump with float switch
• switch panel upgrade (bilge control and USB charger)
• 2x 120W solar panels with PWM 30A controller
• new fuel hoses from tank to engine
• Simarine Pico battery monitor for house
• water tank sensor and visualization
• new house and starter battery

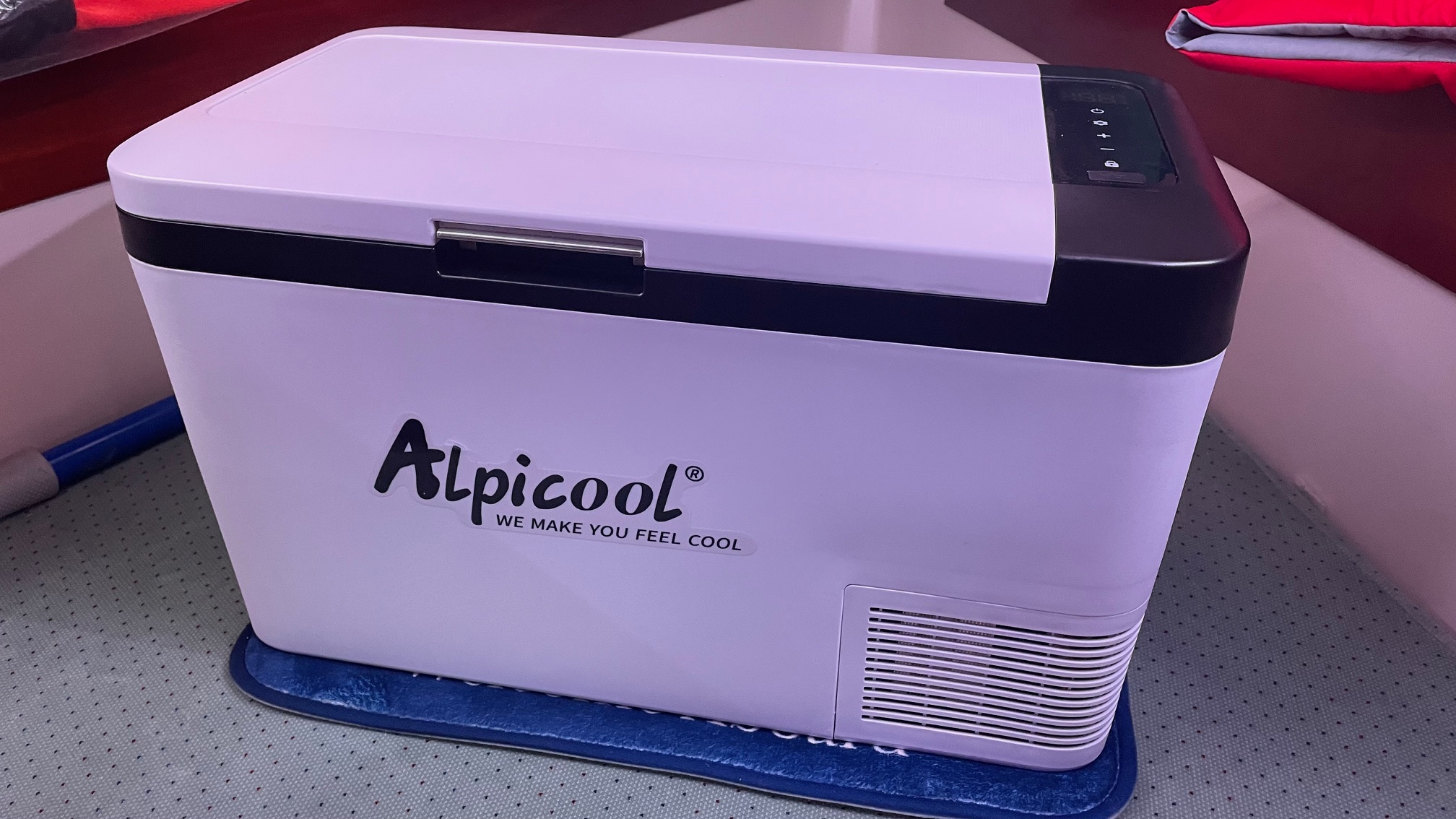

• new Alpicool C25 fridge/freezer

Upgrade History 2024:

• overhaul of ST2000 tiller pilot
• stern shore power connector MP16-10
• new AC system with RCBO and additional 10A circuit breaker
• DC source select switch added in panel
• 12.5 Amps AC to DC converter replaced
• portlight replaced in the head

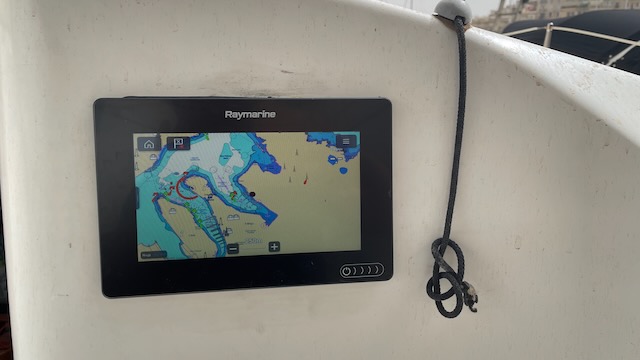

• Axiom 7 chartplotter installed
• new MPPT solar charge controller and wiring replaced
• cutlass bearing replaced and engine shaft aligned

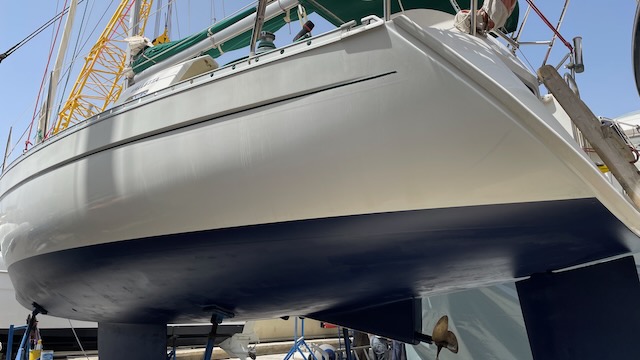

• hull color stripes removed and anti-fouling lifted
• onboard Wifi with Teltonika RUT200

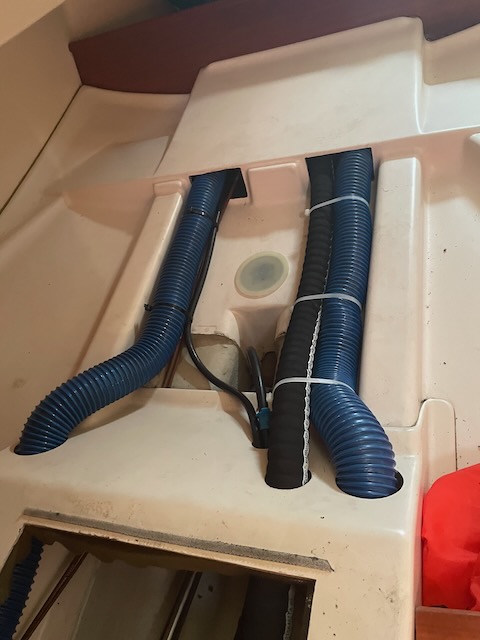

• new exhaust pipe

Upgrade History 2025:

• full SignalK/Axiom/AIS integration

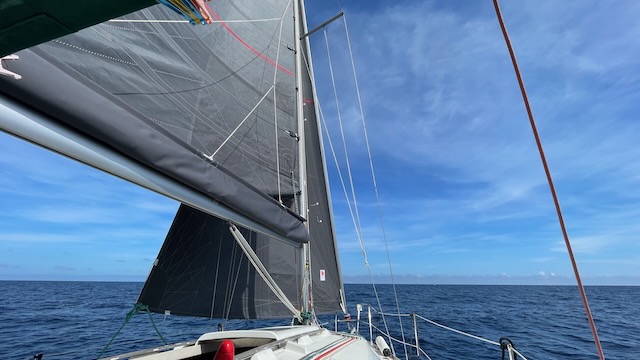

• all new Genoa, Main sail and lazy bag
• Rutgerson Batten Car System

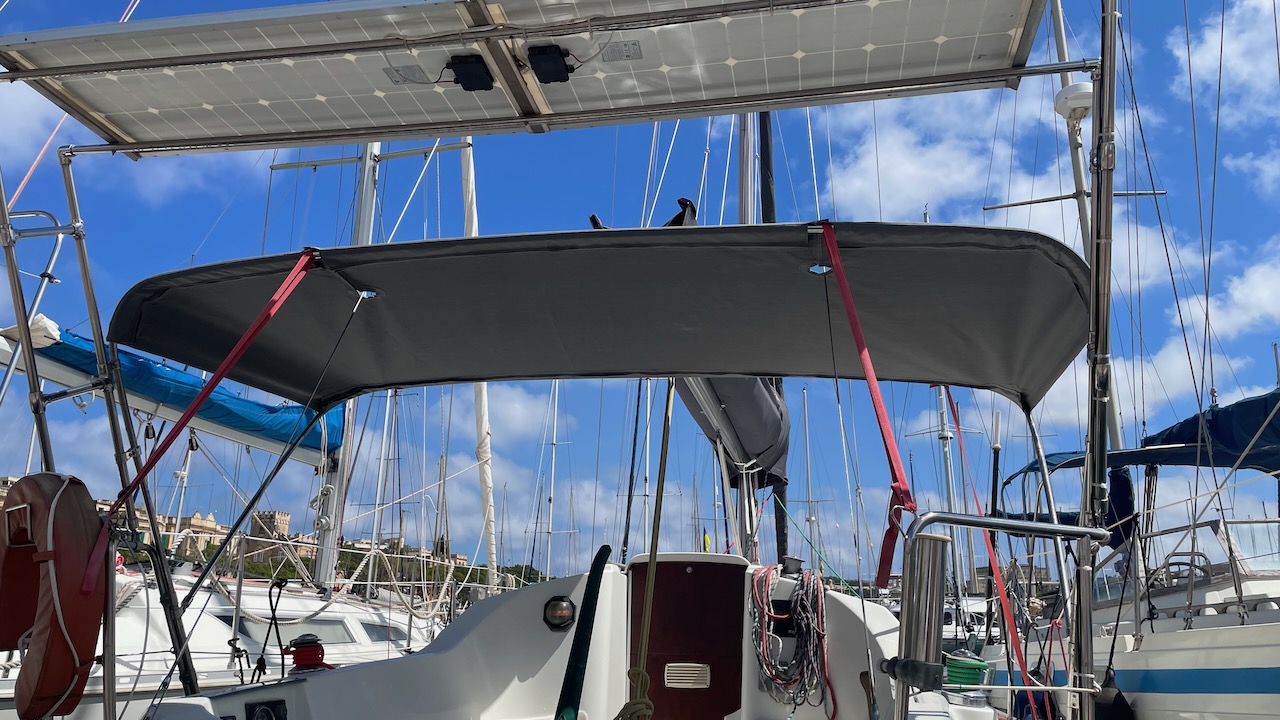

• new Bimini and Seat cushions
• new Victron SmartShunt 300A
• freshwater pump replaced

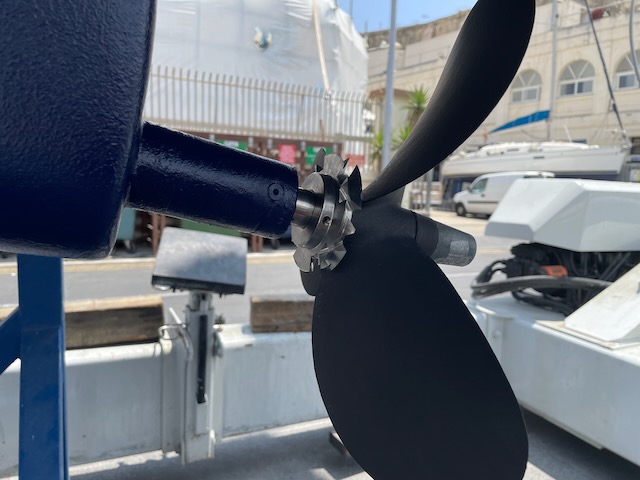

• propeller rope cutter installed

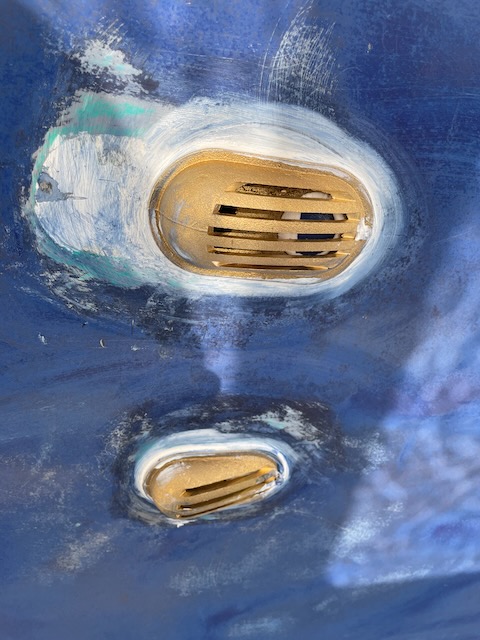

• both engine seacocks replaced

planned future upgrades:

• primary new mast spreaders and tips
• new standing ringging
• connect Seatalk1 and NG with E22158

upgrades (further down the road):

• radar reflector
